GASVAC SOLO PLUS
Low cost, high reliability
Monitor up to 4 gas types
1~8 sample lines
Switch selectable, sample, purge and drain times
Peristaltic drain pump as standard
Easily installed
Low maintenance requirement
Line blockage and pump fail monitoring

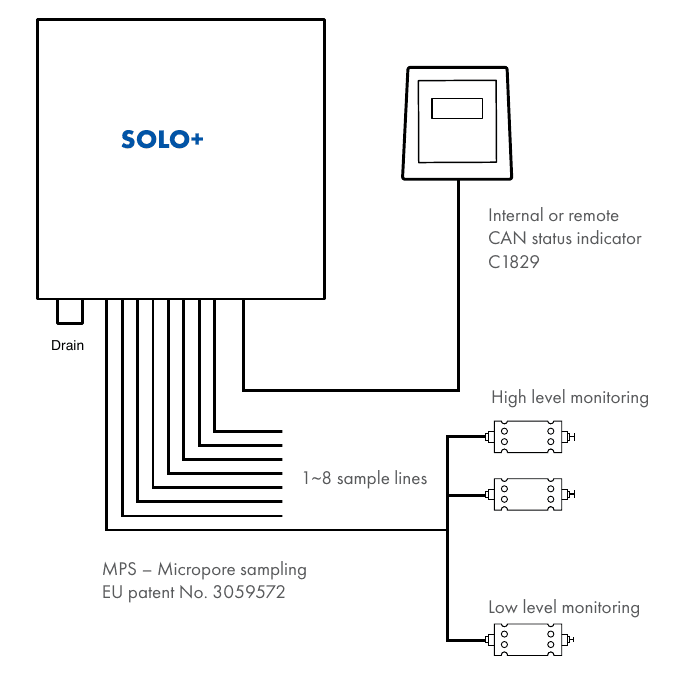

CAN status indicator for internal or remote gas readouts C1829 (option)
Cabinet gas monitoring with auto shutdown (option)
Patented micropore sampling for multi-point mixed lighter and heavier than air gases (MPS option) C1814
Hazardous area sampling (option)
Data link – full remote monitoring C1550 (option)
Multi-function multi-application multi line flow sample system, continuously monitoring up to 4 gas types from the harshest of environments. The GasVac® Solo+ has a unique system controller which enables three main functions to be selected according to site conditions and sampling requirements: sampling time, clean air purge time and condensate drain cycle time. The GasVac® Solo+ offers low cost, high reliability with proven technology, the complete package for any application.For precision-dependent industries, Aspirated Sensor units coupled with the GasVac® Solo+ provide maximum gas monitoring performance, providing a consistent solution in harsh conditions.
Sensors
- 1~4
- Infrared, Electrochemical, PID
- Covering over 700 gas types
Measurements
- Combustible Gas – LEL / % Vol
- Toxic gas – ppm / % Vol
- Oxygen – % Vol. depletion / enrichment
- Refrigerant – ppm
- Any 4~20mA source input signal
Power Supply
- 230/115v AC/24v DC
Outputs
- Sample 1~8 line indication 4~20mA (2mA increments)
- Gas level readings 4~20mA / CANbus
- Pump fail line blockage S.P.C.O
- Individual sensor alarm relays (optional)
- Low / High / Over-range – Fault S.P.C.O
- Cabinet sensor – S.P.C.O (optional)
- Supply fail – S.P.C.O (optional)
Selectable Drain Cycles
- 1, 2, 4, 8
- A sample is extracted from the target area for a timed period during which gas readings are taken at 5 second intervals.
- Following a full sample line cycle a selected purge period flushes the gas path with clean air, rejuvenating the sensor cells while drying out any moisture produced within the system components.
- Moisture produced and drawn along the sample line is removed by the peristaltic pump during the selected drain cycle which corresponds with the chosen purge period.
Application
- Biogas Recovery & Processing
- Bio Fuel Storage
- Odour Monitoring
- Water Treatment
- Tank Farm Monitoring – Storage
- Waste Storage
- Composting
- Air Quality
- Abattoirs
- Air Conditioning Plant
- Battery Rooms
- Bore Holes
- Breweries & Distilleries
- Chilled Water Plants
- Chiller Plant Rooms
- Clean Rooms
- Cold Stores
- Distribution Centres
- Farming & Agricultural
- Food – Mixed Waste
- Food Manufacture, Processing & Packaging
- Gas flaring
- Horticulture
- Hospital Operating Theatres
- Hotel Accommodation
- Inaccessible Target Areas
- Incubation
- IT Server Farms
- Landfill Perimeter
- Marine
- Provisions Stores
- Refrigerant Leak Detection – Retail, Machinery
Internal Main PCB Indicators
- Power, Purge, Sampling, Drain ON
General
- Sample line size 6mm OD 4mm ID – push fit
- Maximum length ASU-1 50m
- Maximum length ASU-2 100m
- Sample line, Nylon, PTFE, Polypropylene
Specials
- Storage tank – full perimeter cover
- Long line monitoring 500m
- Large area monitoring
Enclosure
- Sheet steel 1.5mm
- IP66 NEMA 4
- Base gland plate
Dimensions
- 600mm (W) x 600mm (H) x 210mm (D)
Finish
- RAL 7035 textured powder coat
Weight
- 25kg
Selectable Purge/Sample Times
- 1, 2, 4, 8, 16, 32, 64, 128 minutes

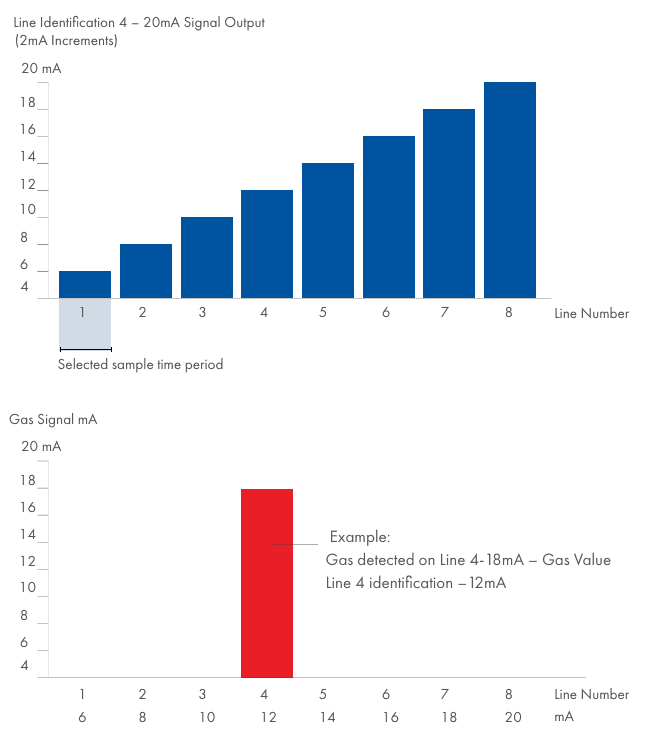

Sample line and gas reading 4-20mA signal outputs
- Following a sample line gas reading (No 4) the line number mA reference and mA gas value would require to be recorded and latched as required by the end user. Subsequent line ssampling will clear previous readings.
