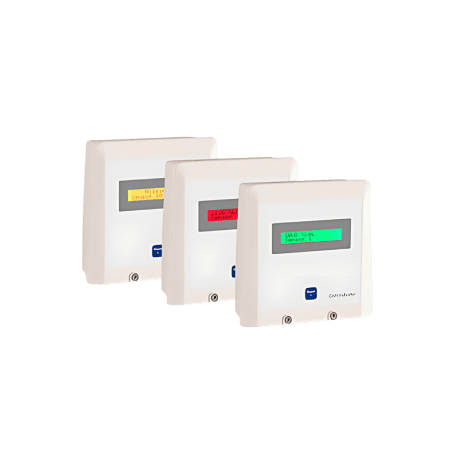

The CAN Status Indicator may be used as a remote indicator warning panel, providing visual and audible alarms or by menu selection, used as a local repeater unit giving details of individual sensor readings and alarms from aselected sensor group, Defender or 101 control units, and as a main monitor panel for the GasVac Solo.The Single Point Gas Alarm Manufactured system is created to offer safe and prompt notifications, which ensure safety in a number of industrial applications.With the Single Point Gas Alarm Manufactured unit, users are able to enjoy greater control and monitoring, which simplifies the handling of potential risks. Its compatibility with various systems renders it a versatile and effective solution for gas detection requirements.

Communications

  • 4 wire addressable CANbus

Indicators

  • Normal - Green display screen (colour options)
  • Repeater Mode:
  • Concentration | Gas type | Sensor identification
  • Alarm Indicator Mode (menu option)
  • Text - SAFE
  • A1 (low alarm)
  • Red screen flashing 1 second + sounder (colour options)
  • Repeater Mode:
  • Reading | Gas type | Sensor identification | Alarm status
  • Alarm Indicator Mode:
  • Text - LOW ALARM
  • A2 (high alarm)
  • Red screen flashing 0.5 second + sounder (colour options)
  • Repeater Mode:
  • Reading | Gas type | Sensor identification | Alarm status
  • Alarm Indicator Mode:
  • Text - HIGH ALARM
  • A3 (overrange alarm)
  • Red screen flashing 0.25 second + sounder (colour options)
  • Repeater Mode:
  • Reading | Gas type | Sensor identification | Alarm status
  • Alarm Indicator Mode:
  • Text - OVERRANGE ALARM
  • Fault
  • Amber screen flashing + sounder (colour options)
  • Repeater Mode:
  • Fault status | Sensor identification
  • Alarm Indicator Mode:
  • Text - FAULT

Other

  • Manual test - indicators, sounder & relays
  • Weight 0.45kg

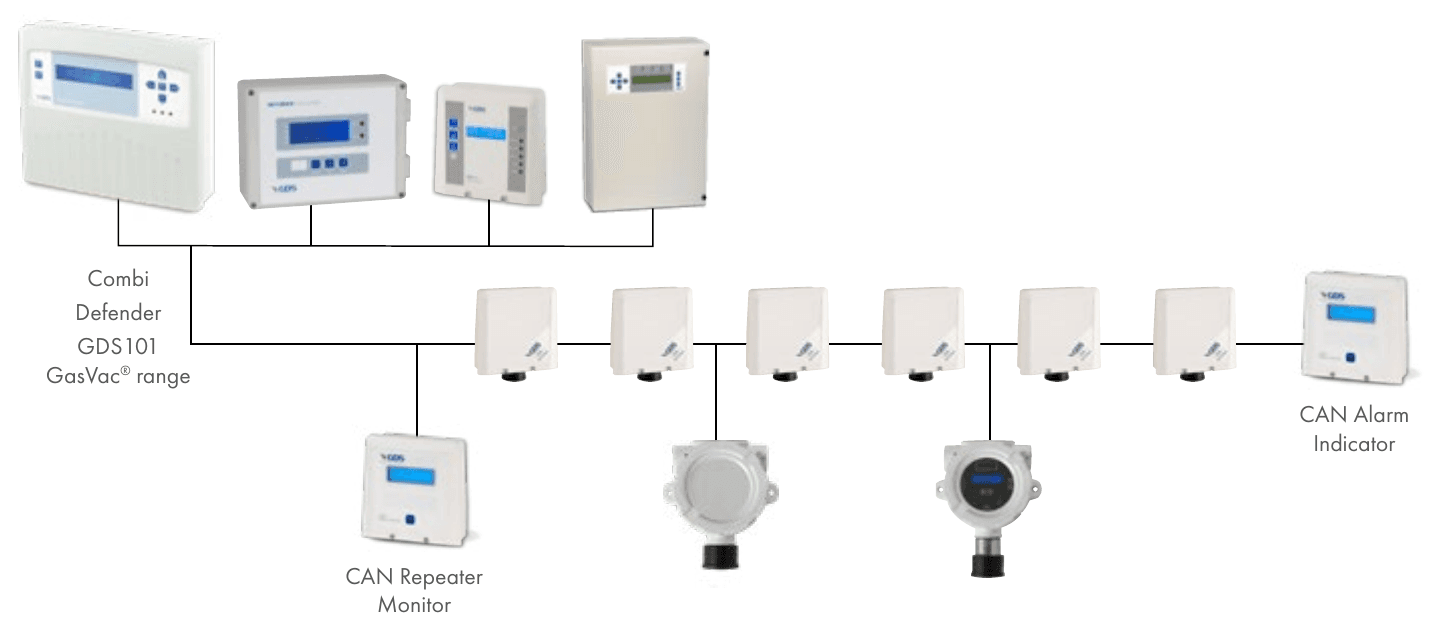

Other image 1

Relays

  • Four - A1, A2, A3, fault
  • SPCO 5A/30vDC
  • Latched or unlatched N/E - N/D
  • Fully off timer

Sounder Output

  • 68dBs @ 1 metre
  • Mutable or permanent isolate option
  • Sounder automatic 10 minute time out option

Enclosure

  • ABS flame retardant FR40
  • Lid Screws M4 x 35
  • Protection - IP54 (weather proof)
  • Base - Signal White RAL 9003
  • Entries
  • Base 2 x 20mm knock-outs
  • Rear 5 x 20mm and 2 slot knock-outs
  • Side clamp glands
  • Environmental air seal gasket - option

Mounting

  • Stand offs - M4 or No 8 screws
  • Drill at (C) when stand offs removed
  • Conduit box - drill at (B) 4.2mm
  • Surface mount box - drill at (B) 4.5mm
  • Flush mount unit - see document C1840 for dimensions

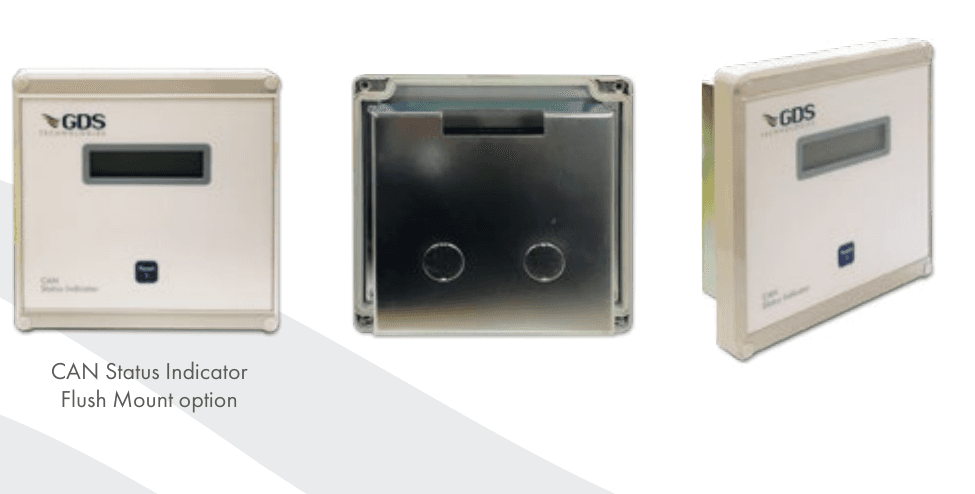

Mounting image 1
